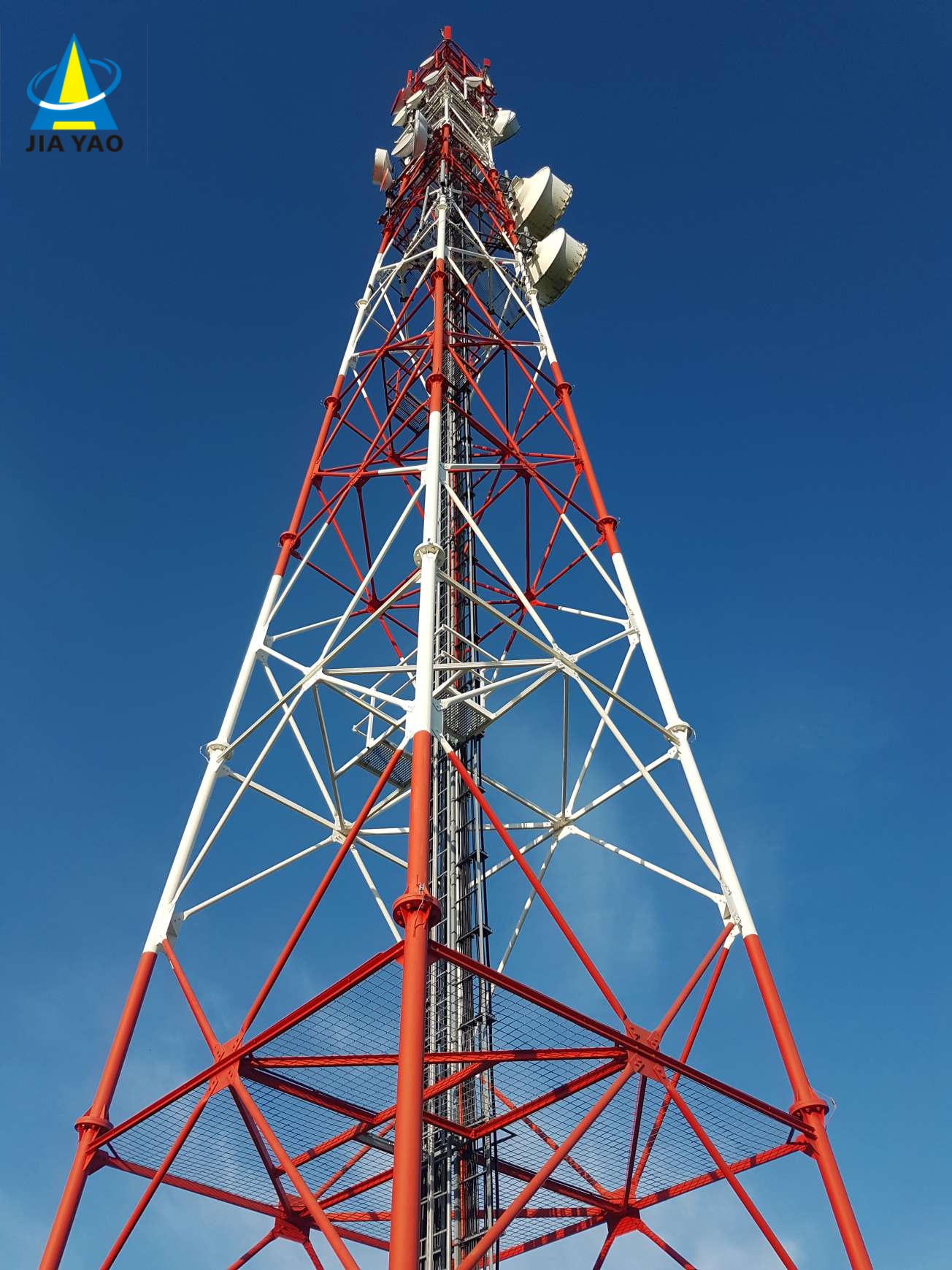

Three Legged self Supporting Telecom Tower Angular Steel Narrow Base 45m 50m 55m 60m 65m

Name: Three Legged self Supporting Telecom Tower Angular Steel Narrow Base 45m 50m 55m 60m 65m
Brand: Jiayao
Price: 1600 USD

China Three Legged self Supporting Telecom Tower Angular Steel Narrow Base 45m 50m 55m 60m 65m wholesale

Brand Name : Jiayao

Model Number : 3 Legged Tubular Steel Tower

Certification : GB / ANSI / TIA-222-G

Place of Origin : China

MOQ : 4 Tons

Price : US$1600,1-100Tons;US$1000,>=100 Tons

Payment Terms : L/C, T/T

Supply Ability : 500 tons per month

Delivery Time : 15 Days

Packaging Details : Packed In Wooden Boxes Or Bundled With Galvanized Sheets

Standard : ANSI/TIA-222-G-2005

Galvanization Standard : ASTM A123/ ISO 1461

CERTIFICATE : ISO9001:2008 COC

Name : 3 Leg Legged Tube Pipe Tubular Self Supporting Steel Hot Dip Galvanized Telecommunication Communication Cell Tower

Structure : Triangular

Material : Steel

Height : 5-100M,or Customized

Wind Speed : 30-150KM/H

Lifetime : More than 20 Years

Galvanized : Hot Dipped Galvanized

Application : Telecommunication

Installation : Bolted

Contact Now

JIAYAO CO., LTD

Product Description

Technical Data

Design
1. Design Code	TIA/EIA-222-G/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

What is the lattcie structure of 3 legged tubular steel tower?

How to mount the MW dish on the 3 legged tubular steel tower?

Main structure of 3 legged tubular steel tower?

First, the structural strength is good

1. The design structure of the steel pipe tower is simple, which can effectively distribute the load of antennas, arresters, cables and other equipment, thereby improving the load-bearing capacity of the whole tower.

2. The cost of the steel pipe tower is relatively low, and it can withstand natural disasters such as strong storms and rains, and has good impact resistance and durability.

Second, easy to install

1. The structure of the steel pipe tower is exquisite, and it can be installed in a short time, which greatly saves the installation cost and time cost.

2. The steel tube tower is relatively easy to assemble and disassemble, especially suitable for applications that require frequent changes to antennas, equipment and cables.

Third,Convenient maintenance

1. The surface of the steel pipe tower is smooth and easy to clean, which can reduce the difficulty

and cost of maintenance work.

2. The steel pipe tower has a long service life and requires less maintenance and maintenance,

which saves a lot of manpower and material resources for some remote areas and harsh telecom base stations.

Please click here for more information!!!

Customer in factory

Assembling

Galvanizing Steel Tower Testing

Packaging & Shipping

Gular customers

Please click here for more information!!!

Certifications

Our Services

Please click here for more information!!!
