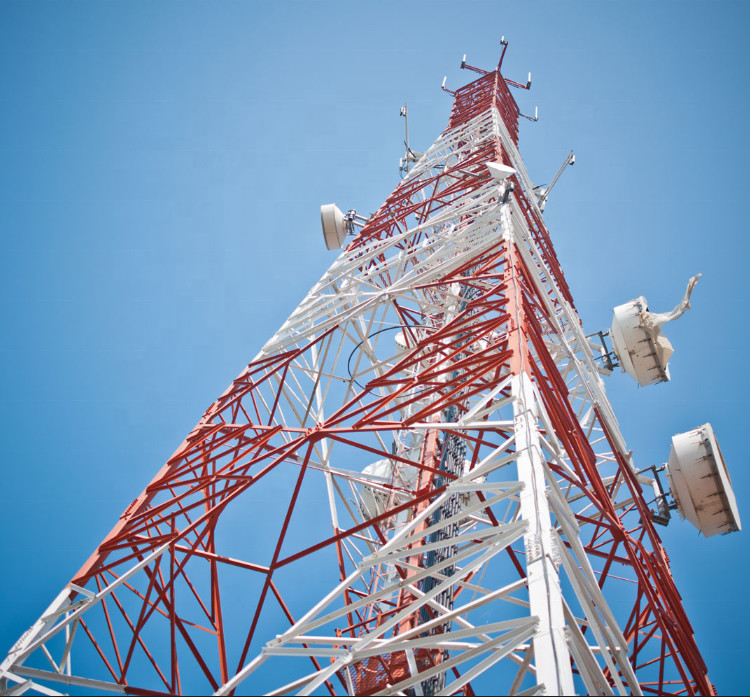

30 Ft Free Standing Tv Radar Internet 4 Legged Self Supporting Angular Lattice Steel Four Leg Communication Tower

Name: 30 Ft Free Standing Tv Radar Internet 4 Legged Self Supporting Angular Lattice Steel Four Leg Communication Tower
Brand: Jiayao
Price: 4 USD

China 30 Ft Free Standing Tv Radar Internet 4 Legged Self Supporting Angular Lattice Steel Four Leg Communication Tower wholesale

Brand Name : Jiayao

Model Number : 4 Legged Angular Steel Tower

Certification : GB / ANSI / TIA-222-G

Place of Origin : China

MOQ : 4 Tons

Price : >=4 Tons,US$1600;>=100 Tons,US$1000

Payment Terms : L/C, T/T

Supply Ability : 100 tons per month

Delivery Time : 15 Days

Packaging Details : 20GP Or 40HQ

Standard : GB / ANSI / TIA-222-G

Material : ASTM A36 A572 Gr50

CERTIFICATE : ISO 9001:2008

Galvanization Standard : ASTM A123/ ISO 1461

Nuts & Bolts : Grade 8.8/6.8/4.8

Name : Mobile Wifi Network 4G 5G Gsm Radio Signal 4 Leg Angle Steel Telecom Tower Telecommunication Mast and Accessories

Wind Speed : 40-180m/s

Height : 5-200M

Warranty : 30 years

Structure : Four Support Legs

Design Load : Customizable

Origin : China

Contact Now

30 Ft Free Standing Tv Radar Internet 4 Legged Self Supporting Angular Lattice Steel Four Leg Communication Tower

Design
1. Design Code	TIA/EIA-222-G/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

What is the lattcie structure of 4 legged angular steel tower?

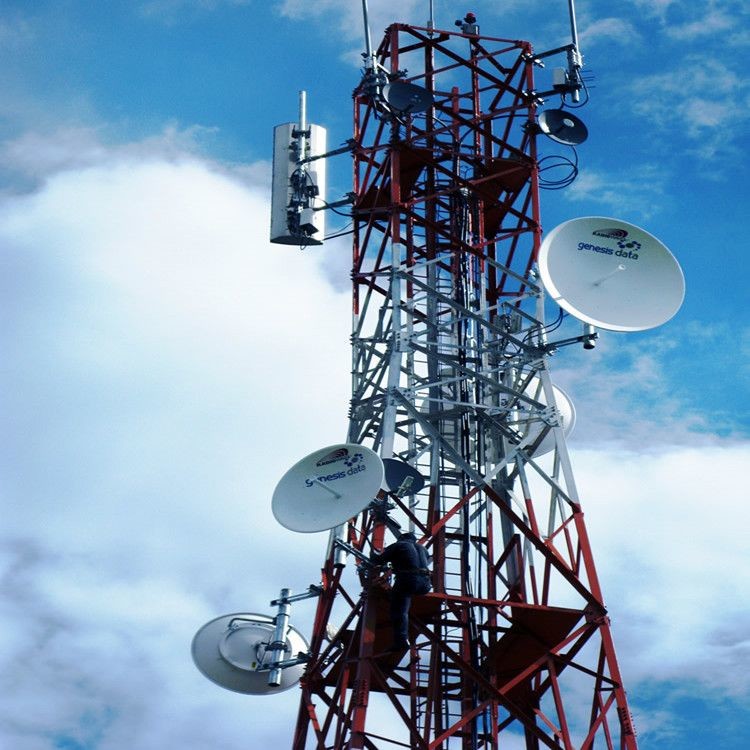

30 Ft Free Standing Tv Radar Internet 4 Legged Self Supporting Angular Lattice Steel Four Leg Communication Tower
How to mount the MW dish on the 4 legged angular steel tower?

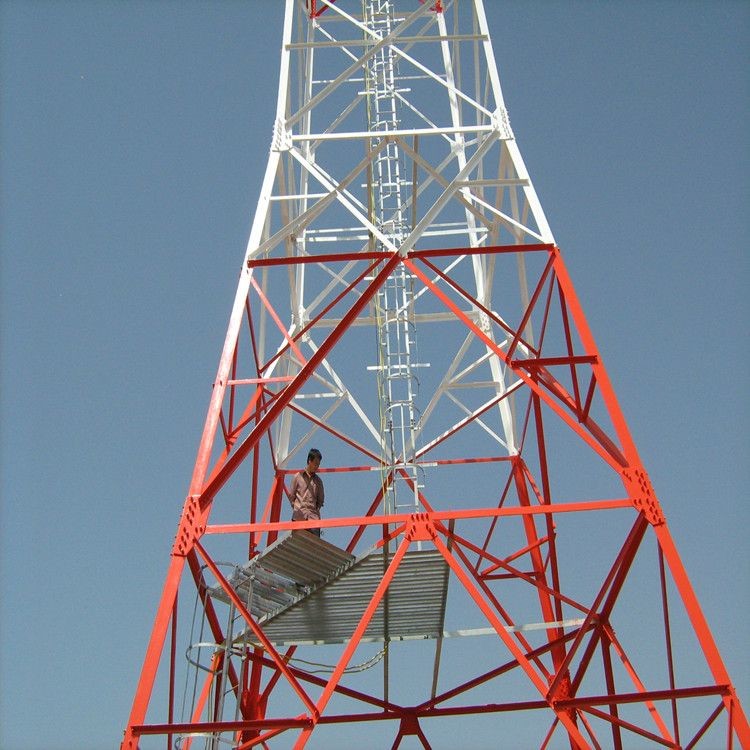

What is the main structure of 4 legged angular steel tower?

The technical parameters meet the following regulations: design wind speed: 30M/S (different regions)

　　Ice: 5mm-7mm (varies by region)

　　Seismic intensity: 8°

　　Suitable temperature: -35°C∽45°C

　　Vertical deviation: <1/1000

　　Ground resistance: ≤10Ω

　　Communication tower anti-corrosion treatment:

hot-dip galvanized anti-corrosion treatment of tower steel components. Guaranteed 50 years without rust.

　　The main function of the communication tower:

support signal transmission and support the signal transmission antenna.

Material origin: Baosteel / Shougang / Handan Iron and Steel / Tangshan Iron and Steel and so on.
